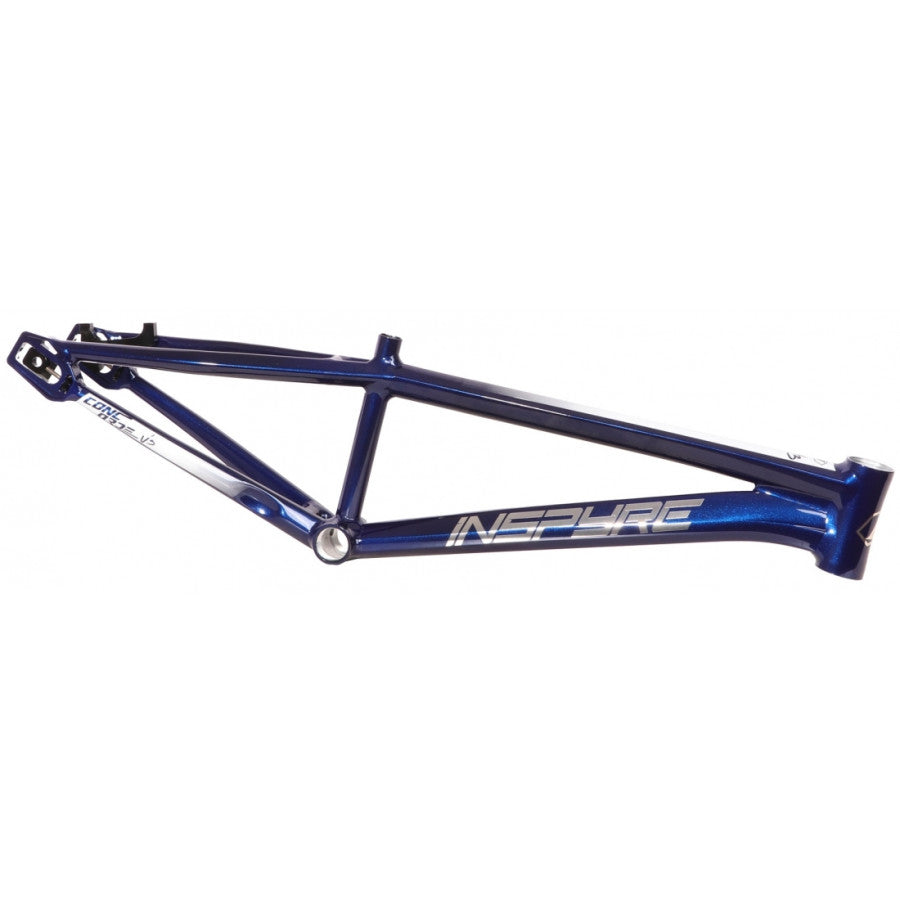

Inspyre Concorde V3 BMX Race Frame - Kiolis Blue
Inspyre Concorde V3 BMX Race Frame - Kiolis Blue
Couldn't load pickup availability
SHIPPING INFORMATION
SHIPPING INFORMATION
Shipping Rates
Costs vary by order, destination, and bike inclusion. Rates for most EU countries: €0–€39. Other countries calculated by weight/volume. May change without notice.
Processing & Delivery
Ships in 1–2 business days (Mon–Fri). Tracking provided. Delays may occur due to weather, customs, or courier issues.
Returns & Exchanges
Return within 14 days; exchange within 5 days. Items must be new, unused, and in original packaging. Customer covers shipping unless agreed. Refunds processed within 5 days.
Damage & Corrections
Report damaged items or errors within 72 hours to info@race2podium.com. Replacement shipping covered if error is ours.
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
Introducing the all-new Inspyre Concorde V3, the result of two years of intensive testing and elite collaboration. Completely redesigned from the ground up, the V3 stands out as one of the most advanced aluminum frames on the BMX Race market today.
Featuring meticulously hydroformed tubes and a world-first intersection design at the top tube and bottom bracket, the Concorde V3 offers the widest cross-sectional area available on an aluminum frame. This maximizes lateral rigidity and ensures that every watt of power is transmitted directly into forward momentum.
Elite Engineering & Aesthetics
- 15% Lighter: Advanced variable-thickness tubing reduces weight by 15% compared to the V2 without compromising structural integrity.
- Unrivaled Rigidity: Oversized rear stays adjust to the full width of the bottom bracket, minimizing frame flex for explosive gate starts.
- SWELL V2 Dropout System: A redesigned 7075-T6 aluminum system providing a 25mm adjustment range. The internal plates stay in place during wheel removal for hassle-free maintenance.
- Hourglass Headtube: CNC-machined IS 45x45 standard designed to keep the cockpit low (110mm-115mm), promoting an aggressive racing stance.
- Premium Finish: Features flat welds and stickers applied under varnish for a polished, professional aesthetic.
Technical Specifications
Material: 100% Aluminum 6061-T6 (Multiple Butted)
Brake Mount: Hydraulic Post-Mount Only (120mm native, 140mm compatible with spacer)
Headtube: CNC Hourglass Integrated (IS 45x45)
Rear Axle: 10mm Standard (15mm Thru-axle kit sold separately)
Chain Tensioning: Integrated CNC knobs with stainless steel axle; ADS compatible
Bottom Bracket: BSA 68mm or BB86 (Size dependent)
Size-Specific Construction
Inspyre recognizes that young racers have different needs. The Junior, Expert, and Expert XL versions utilize specific tube sets adapted to a rider's morphology—ensuring the frame is lighter and appropriately flexible for younger, less powerful athletes compared to the ultra-stiff adult Pro models.
Pro Tip: To achieve the intended aerodynamic profile and fit, we recommend using Pride Racing headset kits specifically designed to match the unique hourglass shape of the Concorde V3 headtube.
