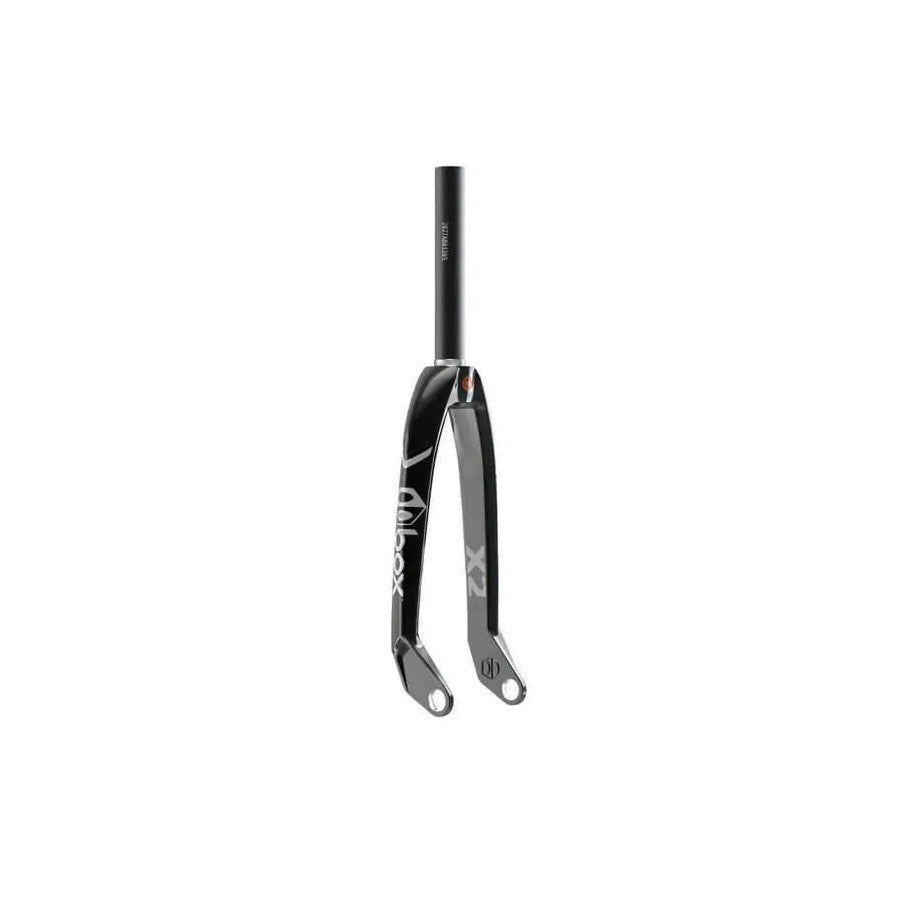

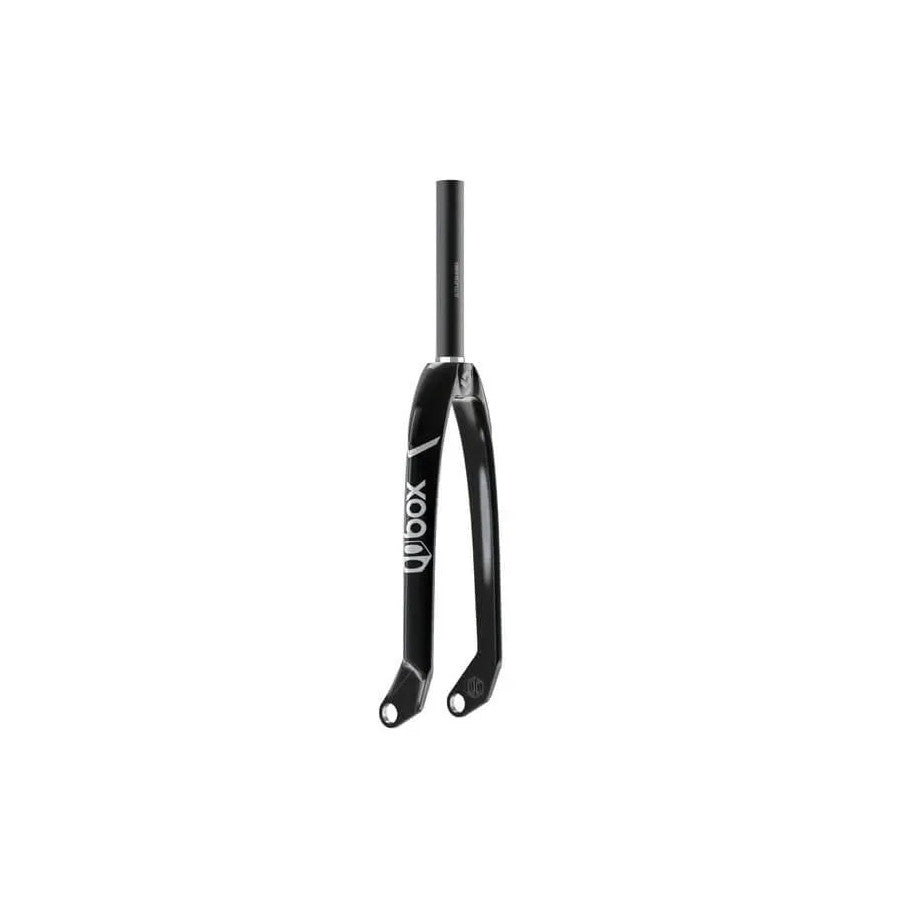

Box One Oversized X2 Pro Carbon BMX Race Fork - Black
Box One Oversized X2 Pro Carbon BMX Race Fork - Black
Couldn't load pickup availability
SHIPPING INFORMATION
SHIPPING INFORMATION
Shipping Rates
Costs vary by order, destination, and bike inclusion. Rates for most EU countries: €0–€39. Other countries calculated by weight/volume. May change without notice.
Processing & Delivery
Ships in 1–2 business days (Mon–Fri). Tracking provided. Delays may occur due to weather, customs, or courier issues.
Returns & Exchanges
Return within 14 days; exchange within 5 days. Items must be new, unused, and in original packaging. Customer covers shipping unless agreed. Refunds processed within 5 days.
Damage & Corrections
Report damaged items or errors within 72 hours to info@race2podium.com. Replacement shipping covered if error is ours.
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
The Box One™ XE Carbon Fork is the definitive choice for larger-sized racers who demand the ultimate blend of carbon fiber performance and steel-like reliability. By applying proprietary Oversized Technology, Box has concentrated material in the "muscular shoulders" to provide elite steering stiffness. When paired with an oversized frame, stem, and handlebars, this fork eliminates latency for explosive gate starts and absolute bike control.
This specific XE model takes durability a step further by featuring a 1-1/8 inch butted chromoly steerer tube and ultra-stiff 20mm thru-axle cold-forged dropouts. This hybrid build is engineered to withstand the high-torque forces of Pro-level racing while maintaining the lightweight agility of high-modulus carbon legs. Whether you're pulling hard on your grips or carving through deep berms, the XE ensures your front-end remains flex-free.
Technical Specifications & Build Components
| BMX Race Metric | Box One XE 20-Inch Specifications |
|---|---|
| Fork Leg Material | High Modulus Unidirectional (UD) Carbon Fiber |
| Steerer Material | Extruded & Butted Chromoly Steel |
| Steerer Diameter | 1-1/8" Straight Profile |
| Dropout Standard | 20mm Thru-Axle (Cold-Forged 6061-T6) |
| Component Weight | 657g | 23.2oz |
| Race Offset | 32mm Precision Geometry |
| Rider Weight Limit | 115kg | 253lbs (Pro Class) |
| Included Hardware | Stem Lock & 20mm Fork Adapters |
Elite Manufacturing Processes
- Vacuum Molded Legs: Ensures a perfect resin-to-fiber ratio for maximum strength in every carbon component.
- Butted Chromoly Steerer: Strategically varied wall thickness to reduce weight while reinforcing the headset interface.
- Cold-Forged Butterfly: Enhances the internal structure at the crown for superior rigidity during impact.
- Versatile Axle Setup: Includes adapters to ensure seamless integration with your BMX race bike hub.
SEO Performance Tip: For the most rigid front-end setup, match this chromoly steerer fork with a 20mm front hub. The XE’s 20mm dropouts are designed to eliminate the fork deflection common in traditional 10mm setups, providing Expert and Pro riders with the most stable steering available.
