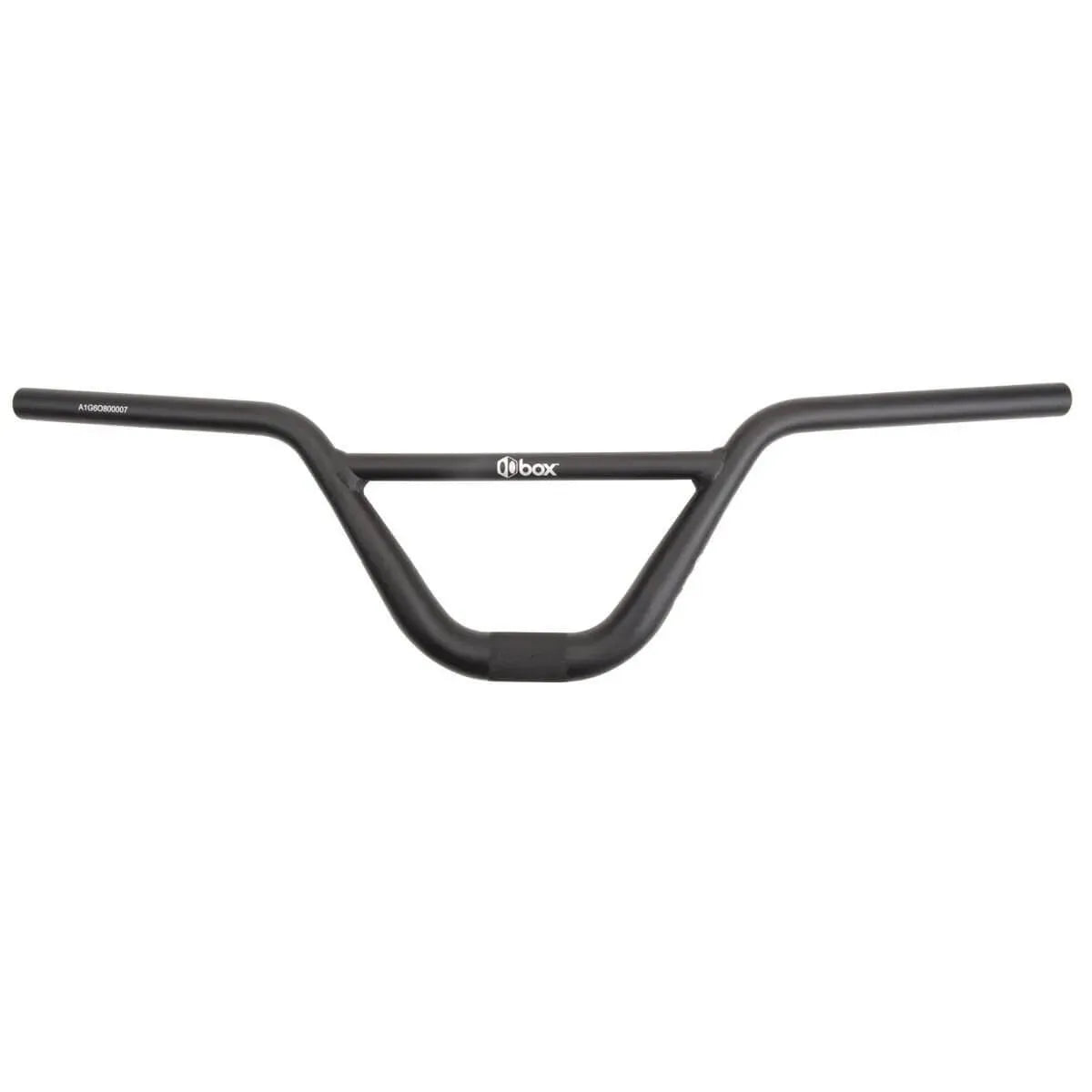

Box One Alloy Triple Taper BMX Race Handlebar
Box One Alloy Triple Taper BMX Race Handlebar
Couldn't load pickup availability
SHIPPING INFORMATION
SHIPPING INFORMATION
Shipping Rates
Costs vary by order, destination, and bike inclusion. Rates for most EU countries: €0–€39. Other countries calculated by weight/volume. May change without notice.
Processing & Delivery
Ships in 1–2 business days (Mon–Fri). Tracking provided. Delays may occur due to weather, customs, or courier issues.
Returns & Exchanges
Return within 14 days; exchange within 5 days. Items must be new, unused, and in original packaging. Customer covers shipping unless agreed. Refunds processed within 5 days.
Damage & Corrections
Report damaged items or errors within 72 hours to info@race2podium.com. Replacement shipping covered if error is ours.
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
The Box One™ Aluminum Handlebar is a high-performance racing component specifically tailored for medium-sized racers. By utilizing hardened aluminum alloy, Box has engineered a bar that significantly reduces unnecessary mass while maintaining the elite stiffness required for competitive BMX racing. These bars leverage Oversized Technology to ensure that every ounce of rider input is converted into immediate on-track performance.
These handlebars serve a critical dual purpose: they enhance steering precision and provide a rigid "backstop" to the "lifting" phenomenon. This stiffness is essential during explosive pedaling; if your handlebars deflect when you pull up, you lose power. When paired with other Box Oversized components, these bars minimize twist and latency for a telepathic handling experience.
Oversized Engineering & Materials
- 6061-T6 Hardened Aluminum: Chosen for its exceptional strength-to-weight ratio, providing a crisp, responsive feel that is ideal for mid-sized experts and pros.
- 31.8mm Oversized Bore: The massive clamp interface dramatically increases surface contact with the stem, virtually eliminating handlebar flex and bar-slip.
- Variable Wall Thickness: Material is strategically moved from low-stress areas to zones of high load, optimizing the bar's structural integrity while shedding excess weight.
- Premium Finish: Features a sleek Matte Black Anodized finish with high-precision Laser Etched Graphics for a professional look that lasts.
Size & Weight Specifications
Available in three specific heights to perfectly dial in the cockpit for the developing racer:
| Rise (Height) | Width | Weight (Grams) | Weight (Ounces) |
|---|---|---|---|
| 6.0” | 26.6” | 447 g | 15.8 oz |
| 6.5” | 27.0” | 465 g | 16.4 oz |
| 7.0” | 27.0” | 480 g | 16.8 oz |
Technical Specs & Compatibility
- Material: 6061-T6 Aluminum (Extruded and Mandrel Formed)
- Geometry: 7° Back-sweep / 2° Up-sweep
- Clamp Diameter: 31.8 mm (Requires Oversized 31.8mm Stem)
- Grip Diameter: 22.2 mm (Standard size for all BMX grips and brake levers)
Performance Insight: Aluminum bars offer a much stiffer and more direct feel than traditional chromoly. For medium-sized riders, the Box One Aluminum 31.8mm setup is the fastest way to stiffen up the front end without adding the weight of a pro-sized steel bar.
