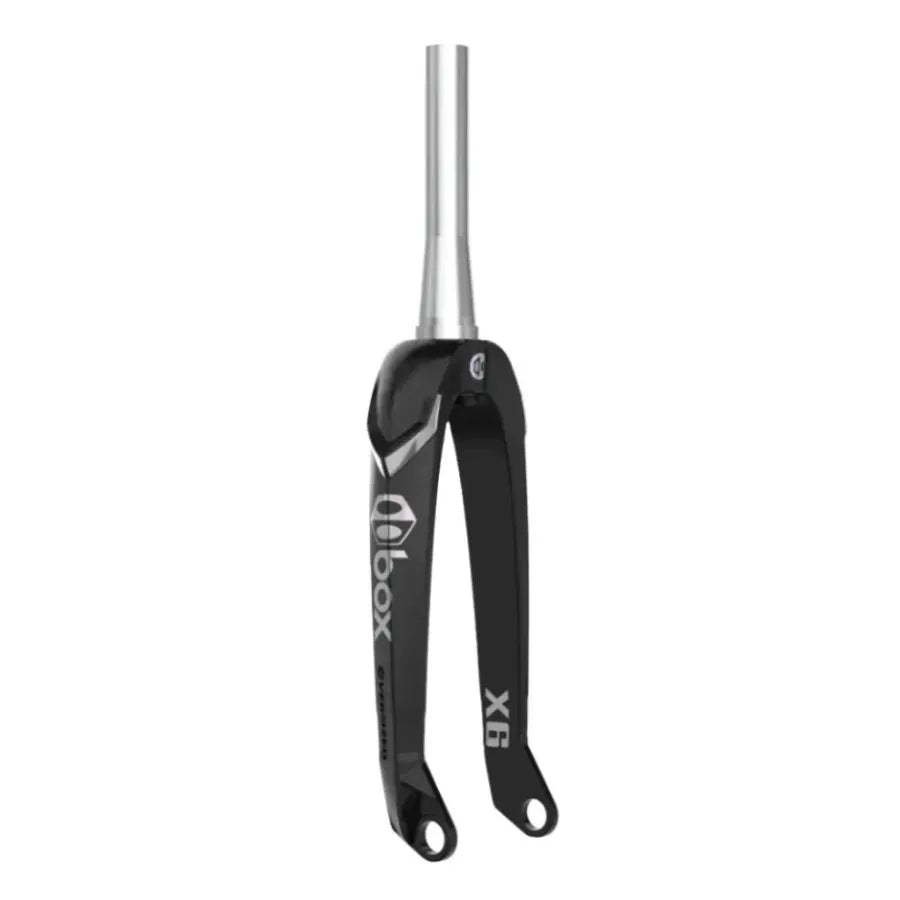

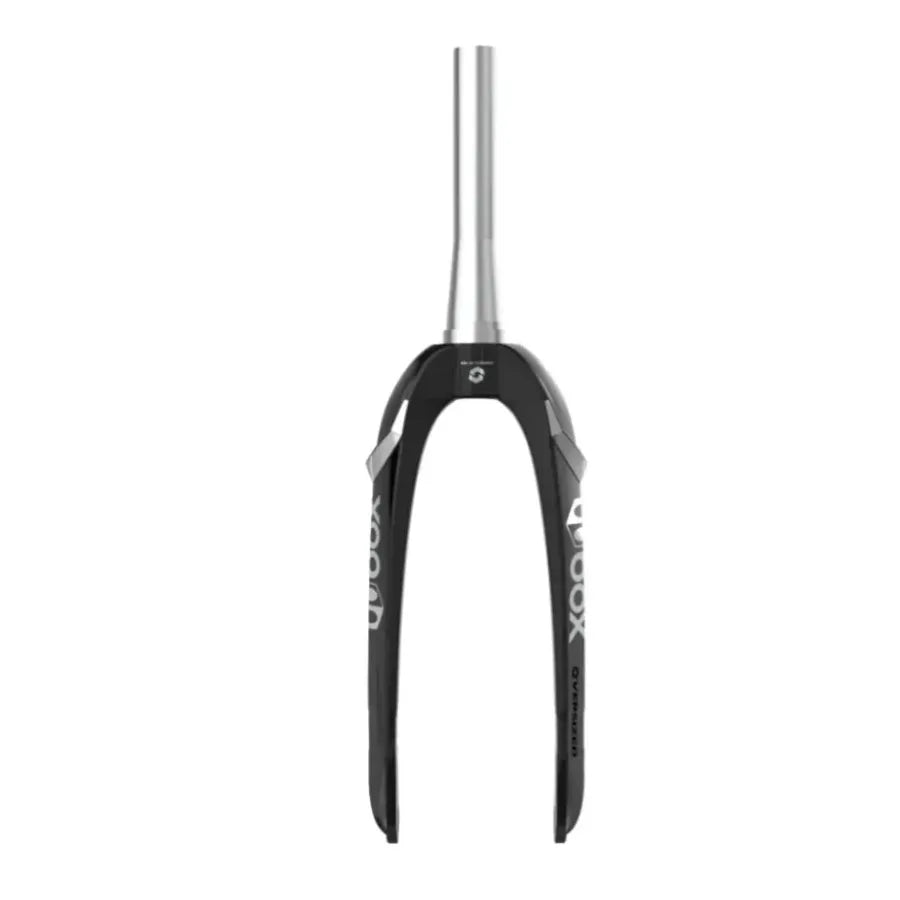

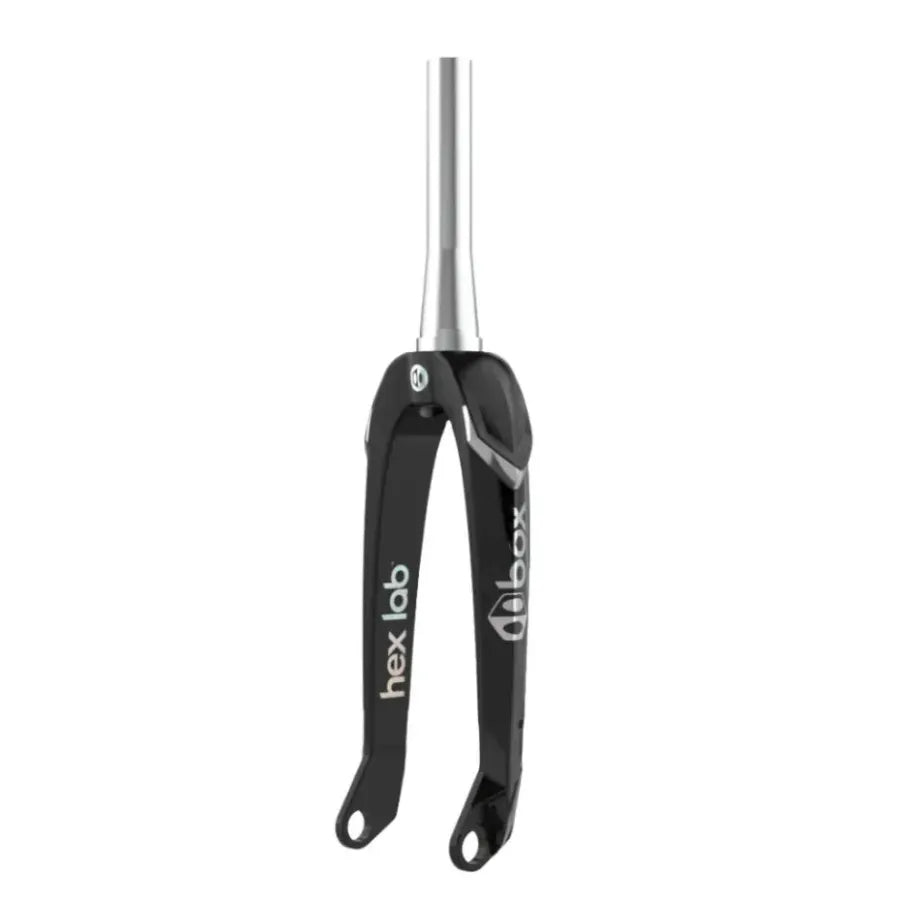

Box HexLab X6 Pro Carbon Race Rear Fork - Matte Black
Box HexLab X6 Pro Carbon Race Rear Fork - Matte Black
Couldn't load pickup availability
SHIPPING INFORMATION
SHIPPING INFORMATION
Shipping Rates
Costs vary by order, destination, and bike inclusion. Rates for most EU countries: €0–€39. Other countries calculated by weight/volume. May change without notice.
Processing & Delivery
Ships in 1–2 business days (Mon–Fri). Tracking provided. Delays may occur due to weather, customs, or courier issues.
Returns & Exchanges
Return within 14 days; exchange within 5 days. Items must be new, unused, and in original packaging. Customer covers shipping unless agreed. Refunds processed within 5 days.
Damage & Corrections
Report damaged items or errors within 72 hours to info@race2podium.com. Replacement shipping covered if error is ours.
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
The Box One™ X5 Carbon Fork represents the ultimate evolution in BMX racing technology, utilizing proprietary Oversized Technology to redefine bike handling. By strategically moving carbon fiber to high-load areas, the "muscular shoulders" and larger hips eliminate steering flex. When paired with an oversized frame, stem, and handlebars, this fork delivers unmatched responsiveness for elite gate starts and high-speed manuals.
As the first BMX fork to feature a 6Al-4V titanium steerer tube, the X5 offers a tapered 1.5 to 1-1/8 inch profile that drastically reduces deflection. The 20mm thru-axle cold-forged dropouts provide a rock-solid build, ensuring maximum stability when diving into berms. Every component, from the internal butterfly to the high modulus carbon legs, is engineered for Pro level performance and total reliability while gripping your grips.
Technical Specifications & Elite Features
| BMX Race Metric | X5 20-Inch Specifications |
|---|---|
| Fork Leg Material | High Modulus Unidirectional (UD) Carbon Fiber |
| Steerer Material | 6Al-4V Titanium (Extruded & CNC) |
| Steerer Profile | 1-1/8" Tapered to 1.5" |
| Component Weight | 615g | 21.7oz (+/- 5%) |
| Dropout Standard | 20mm Thru-Axle (Cold-Forged 6061-T6) |
| Axle to Crown | 302.6mm with 32mm Offset |
| Rider Weight Limit | 115kg | 253lbs Max (Pro Specification) |
| Finish / Hardware | Matte Black / Prizm Decals / Includes Stem Lock |
SEO Performance Tip: To achieve maximum steering stiffness, pair this titanium steerer fork with a tapered headtube frame and a 20mm front hub. This setup provides the most rigid front-end interface available in BMX racing, effectively eliminating fork deflection during high-load sprints.
