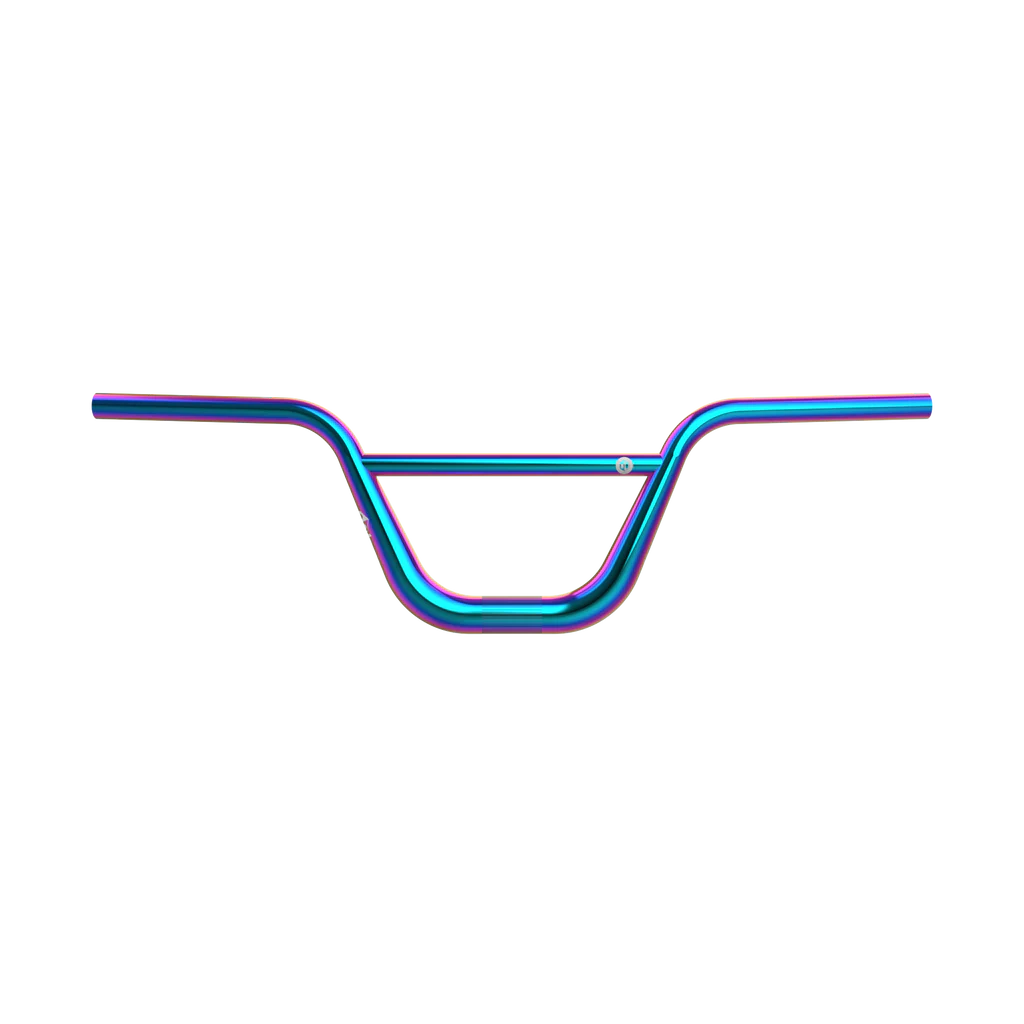

Box Hex Lab Oversized Titanium Race Rear Handlebars - Mckenzie Rainbow
Box Hex Lab Oversized Titanium Race Rear Handlebars - Mckenzie Rainbow
Couldn't load pickup availability
SHIPPING INFORMATION
SHIPPING INFORMATION
Shipping Rates
Costs vary by order, destination, and bike inclusion. Rates for most EU countries: €0–€39. Other countries calculated by weight/volume. May change without notice.
Processing & Delivery
Ships in 1–2 business days (Mon–Fri). Tracking provided. Delays may occur due to weather, customs, or courier issues.
Returns & Exchanges
Return within 14 days; exchange within 5 days. Items must be new, unused, and in original packaging. Customer covers shipping unless agreed. Refunds processed within 5 days.
Damage & Corrections
Report damaged items or errors within 72 hours to info@race2podium.com. Replacement shipping covered if error is ours.
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
The Box One™ Titanium Handlebar, inspired by McKenzie Gayheart, is a stunning fusion of art and elite engineering. Tailored for larger-sized racers, this Rainbow Titanium model provides the structural rigidity of steel without the weight compromise. It serves as an exotic alternative to carbon fiber, offering a highly sensitive and refined steering response that dampens track harshness while maintaining absolute power delivery.
Utilizing Box's proprietary Oversized Technology, these bars address the "lifting" phenomenon—the crucial moment when you pull up on the bars to drive power into the pedals. By eliminating handlebar deflection, every ounce of effort is converted into forward momentum rather than lost to material flex.
The Titanium Advantage
- McKenzie Gayheart Inspired: Featuring a vibrant rainbow finish and laser-etched graphics, these bars are designed to stand out on the gate and the podium.
- 3AL 2.5V Titanium: Provides the legendary durability of metal with a weight profile that rivals carbon, offering a more "forgiving" and refined feel for the rider.
- 31.8mm Oversized Bore: The massive clamp interface dramatically increases steering stiffness and reduces the "latency" between rider input and bike reaction.
- Variable Wall Thickness: Material is strategically moved from low-stress zones to high-load areas, minimizing twist while shedding unnecessary weight.
Technical Specifications
| Feature | Specification |
|---|---|
| Material | 3AL 2.5V Titanium |
| Finish | Rainbow / Laser-Etched Graphics |
| Height (Rise) | 7.0" |
| Width | 28.25” (717.5 mm) |
| Back-Sweep | 7° |
| Up-Sweep | 2° |
| Clamp Diameter | 31.8 mm (Oversized) |
Rider Safety & Compatibility
- Weight Limit: 115 kg (253 lbs) — rigorously tested to Category 2 of the EN 16054:2012 Standard.
- Cockpit Integration: Requires an Oversized 31.8mm stem. The grip area remains a standard 22.2mm for compatibility with all race grips and brake levers.
- Process: Extruded and mandrel-formed for maximum structural integrity and precision.
Pro Insight: Power is easily lost to handlebar flex. When you combine the stiffness of the 31.8mm clamp with the resilient nature of titanium, you get a front end that doesn't just feel faster—it is faster, especially during high-torque gate starts.
