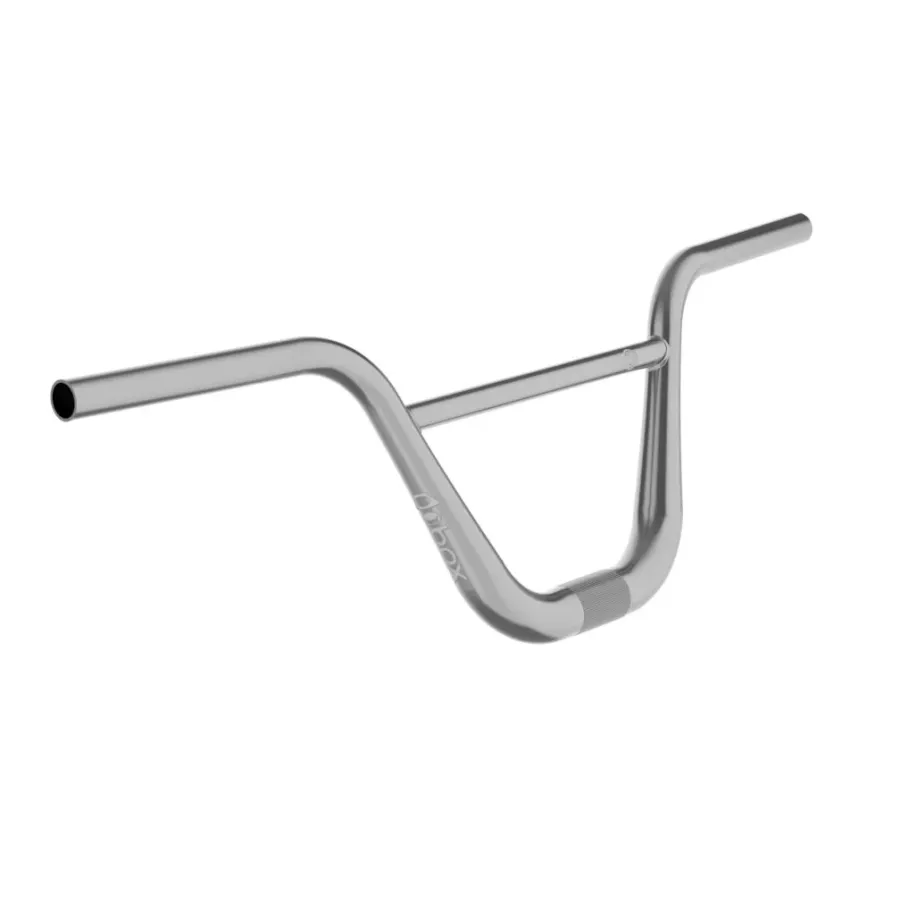

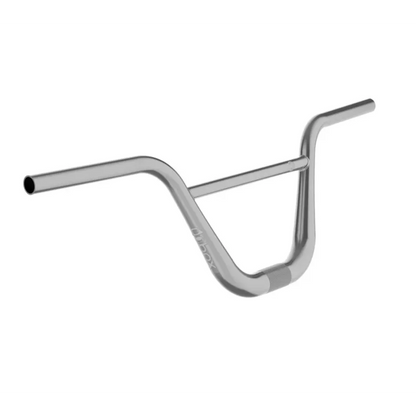

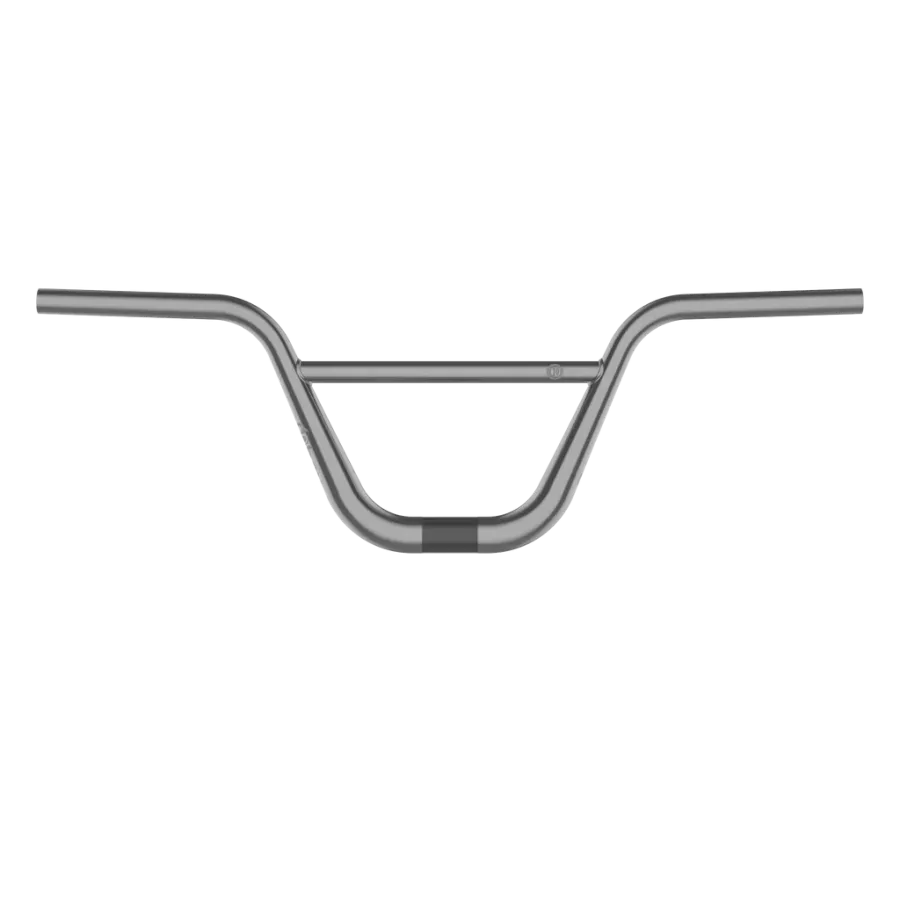

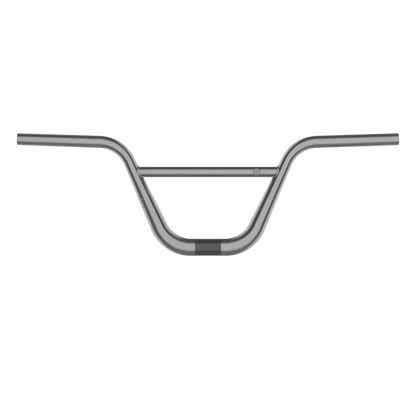

Box Hex Lab Oversized Titanium BMX Race Rear Handlebars
Box Hex Lab Oversized Titanium BMX Race Rear Handlebars
Couldn't load pickup availability
SHIPPING INFORMATION
SHIPPING INFORMATION
Shipping Rates
Costs vary by order, destination, and bike inclusion. Rates for most EU countries: €0–€39. Other countries calculated by weight/volume. May change without notice.
Processing & Delivery
Ships in 1–2 business days (Mon–Fri). Tracking provided. Delays may occur due to weather, customs, or courier issues.
Returns & Exchanges
Return within 14 days; exchange within 5 days. Items must be new, unused, and in original packaging. Customer covers shipping unless agreed. Refunds processed within 5 days.
Damage & Corrections
Report damaged items or errors within 72 hours to info@race2podium.com. Replacement shipping covered if error is ours.
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
The Box One™ Titanium Handlebar represents a masterclass in metallurgy, tailored specifically for larger-sized racers who seek the structural rigidity of steel without the weight penalty. Positioned as an exotic alternative to carbon fiber, titanium offers a unique riding signature: while carbon provides an aggressive, ultra-stiff steering response, titanium feels highly sensitive and refined, dampening harsh track vibrations while maintaining elite strength.
Part of Box’s Oversized Technology ecosystem, these bars are designed to combat "handlebar deflection." By strategically varying tube diameters and wall thicknesses, Box has created a rigid backstop for the "lifting" movement during a sprint, ensuring that every ounce of pull-up force is converted into forward momentum.
Key Engineering Features
- 3AL 2.5V Titanium: An aerospace-grade alloy that provides a legendary strength-to-weight ratio and a sophisticated "springy" resilience that reduces hand fatigue.
- Oversized 31.8mm Bore: Features a massive clamping area that dramatically reduces twist and latency when paired with a compatible 31.8mm stem.
- Oversized Technology: Material is moved from low-stress zones to high-load areas, minimizing torsional flex during explosive out-of-the-gate snaps.
- Mandrel-Formed Precision: Each bar is extruded and formed to exacting standards, ensuring structural consistency across all rise options.
Technical Specifications
| Metric | Specification |
|---|---|
| Material | 3AL 2.5V Titanium |
| Rise Options | 5.5", 6.5", 7", 7.5", 8", 8.5" |
| Width | 28.25” (717.5 mm) |
| Back-Sweep | 7° |
| Up-Sweep | 2° |
| Clamp Diameter | 31.8mm (Oversized) |
| Finish | Laser-Etched Graphics |
Rider Safety & Compatibility
- Maximum Rider Weight: 115 kg (253 lbs) — engineered for the most powerful athletes on the track.
- Standard Compliance: Meets Category 2 of the EN 16054:2012 Standard for safety and durability.
- Cockpit Integration: Requires a 31.8mm stem; however, the grip area remains 22.2mm to fit all standard BMX grips and brake levers.
The Performance Edge: When you combine these bars with other Box Oversized components, you create a unified, ultra-stiff front end. This system reduces the "latency" between your input and the bike's reaction, giving you a distinct advantage in tight, high-speed maneuvers.
