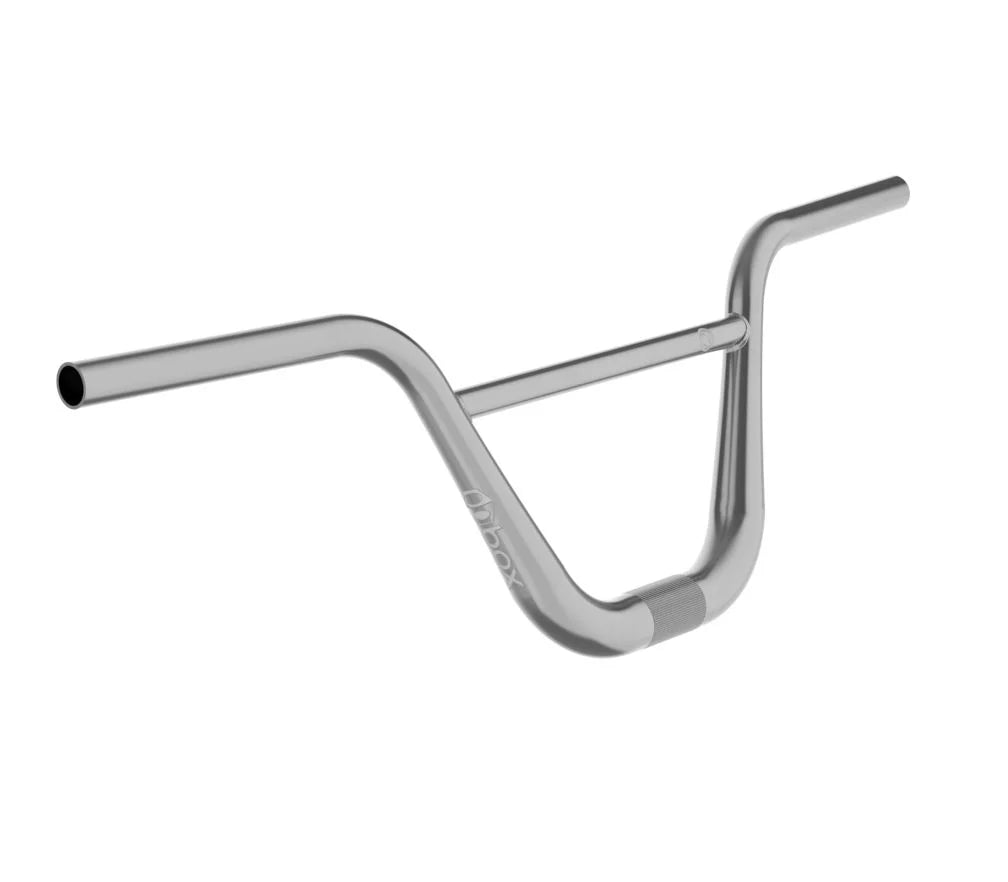

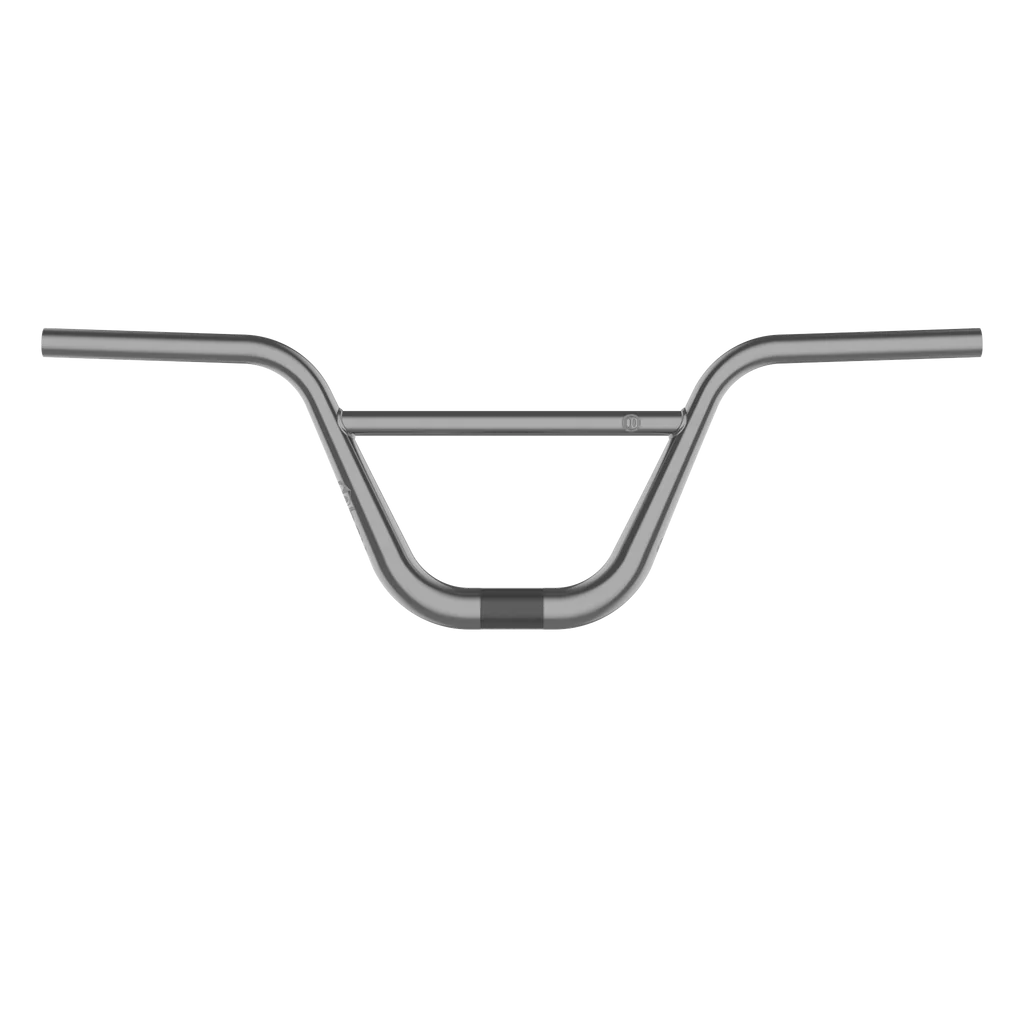

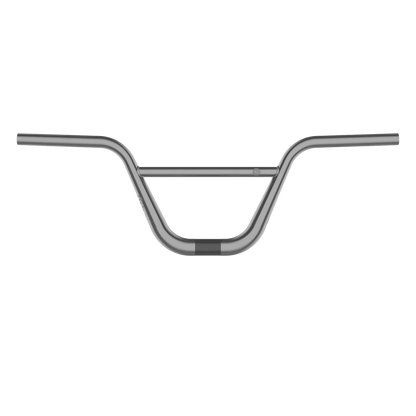

Box Hex Lab Oversized Flat Titanium Rear BMX Race Handlebars
Box Hex Lab Oversized Flat Titanium Rear BMX Race Handlebars
Couldn't load pickup availability
SHIPPING INFORMATION
SHIPPING INFORMATION
Shipping Rates
Costs vary by order, destination, and bike inclusion. Rates for most EU countries: €0–€39. Other countries calculated by weight/volume. May change without notice.
Processing & Delivery
Ships in 1–2 business days (Mon–Fri). Tracking provided. Delays may occur due to weather, customs, or courier issues.
Returns & Exchanges
Return within 14 days; exchange within 5 days. Items must be new, unused, and in original packaging. Customer covers shipping unless agreed. Refunds processed within 5 days.
Damage & Corrections
Report damaged items or errors within 72 hours to info@race2podium.com. Replacement shipping covered if error is ours.
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
The Box One™ Titanium Handlebar is a masterpiece of material science, tailored specifically for larger-sized racers who demand elite performance without compromise. Titanium allows for the structural rigidity of steel while maintaining a weight profile competitive with carbon fiber. For the discerning racer, these bars offer a highly sensitive and refined feel—providing a sophisticated alternative to the ultra-aggressive response of carbon.
Leveraging Box’s proprietary Oversized Technology, these bars are engineered to maximize both steering precision and pedaling efficiency. By varying wall thicknesses and tube diameters, Box has eliminated "handlebar-deflection," ensuring that the power you put into pulling up on the bars during a sprint is delivered directly to the rear wheel.
Key Engineering Features
- 3AL 2.5V Titanium: An aerospace-grade material that offers an exceptional strength-to-weight ratio and a unique "dampened" feedback that reduces fatigue.
- Oversized 31.8mm Bar Bore: Part of the Box Oversized system, this massive clamping area significantly reduces twist and latency for instantaneous handling.
- Mandrel-Formed Accuracy: Extruded and shaped with precision to ensure structural consistency across the high-load zones of the bar.
- Strategic Wall Variation: Material is moved from low-stress areas to high-load zones, creating a "backstop" to the lifting phenomenon during explosive gate starts.
Technical Specifications
| Metric | Specification |
|---|---|
| Material | 3AL 2.5V Titanium |
| Clamp Diameter | 31.8mm (Oversized) |
| Rise (Heights) | 7.5", 8.0", 8.5" |
| Width | 28.25” (717 mm) |
| Weight | 680 g (24 oz) |
| Geometry | 3° Back-sweep / 2° Up-sweep |
| Grip Diameter | Standard 22.2mm |
Rider Safety & Compatibility
- Weight Limit: Supports riders up to 115 kg (253 lbs), making these some of the strongest high-performance bars on the market.
- Standard Compliance: Engineered to meet Category 2 of the EN 16054:2012 standard.
- Visuals: Premium finish featuring Laser-Etched Graphics for a clean, permanent look that won't peel or fade.
The Oversized Advantage: To truly unlock the potential of these bars, pair them with a Box 31.8mm Oversized stem. The increased surface area at the clamp eliminates the "slipping" issues common with smaller diameters, providing a rock-solid cockpit for the most powerful riders on the track.
