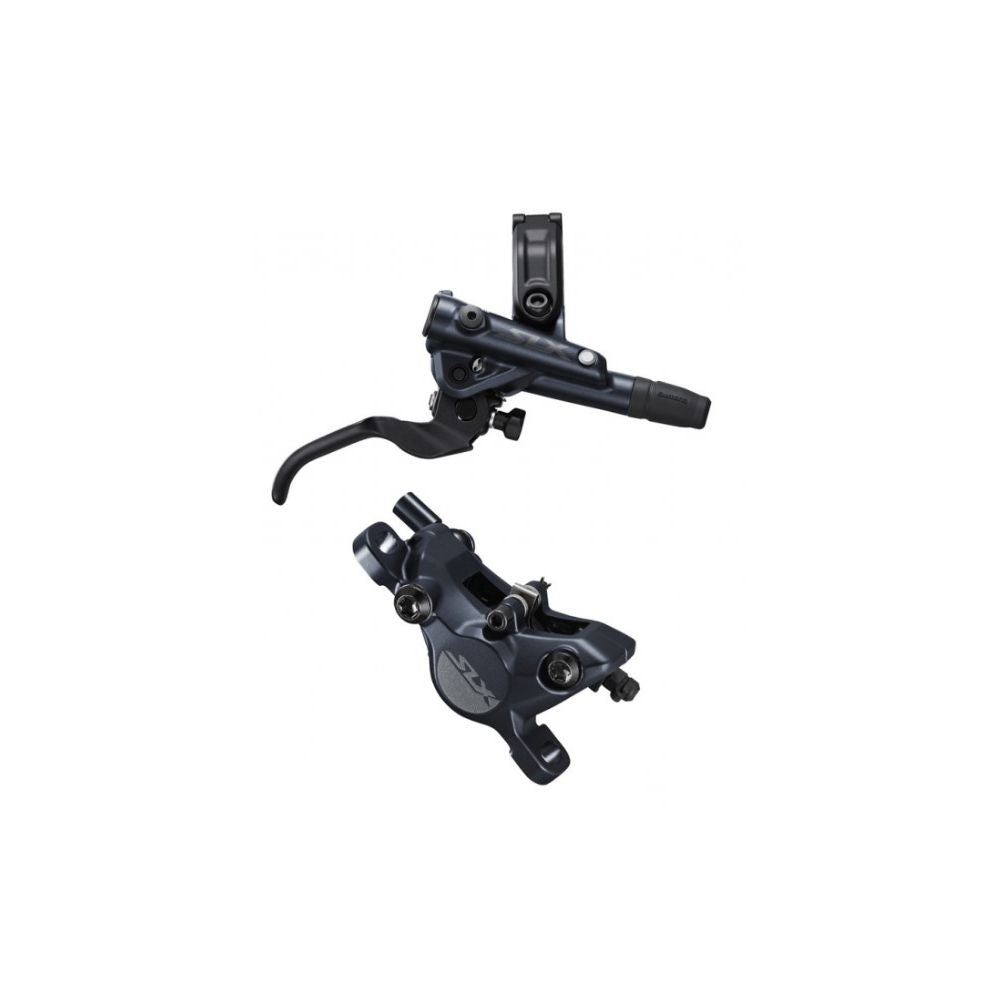

SHIMANO SLX M7100 DISC BRAKE J-KIT - 1700mm
The SHIMANO SLX M7100 brake kit features the SERVO-WAVE system, offering outstanding and reliable performance while maintaining smooth operation. It includes a refined, ergonomic 2-finger lever that allows for precise braking control. The master cylinder and dual-piston caliper ensure powerful and dependable braking in all conditions. The M7100 lever also features an additional support point on the handlebar to enhance rigidity during braking.
Thanks to its I-SPEC clamp, installation is quick and does not require removing the grips. It also allows for a customized cockpit setup with a 20° adjustment angle for the shifter lever. The J-KIT system enables easy hose length adjustment before securing it to the master cylinder and/or simplifies internal cable routing.
SPECIFICATIONS
- Brake Type : Hydraulic disc brake

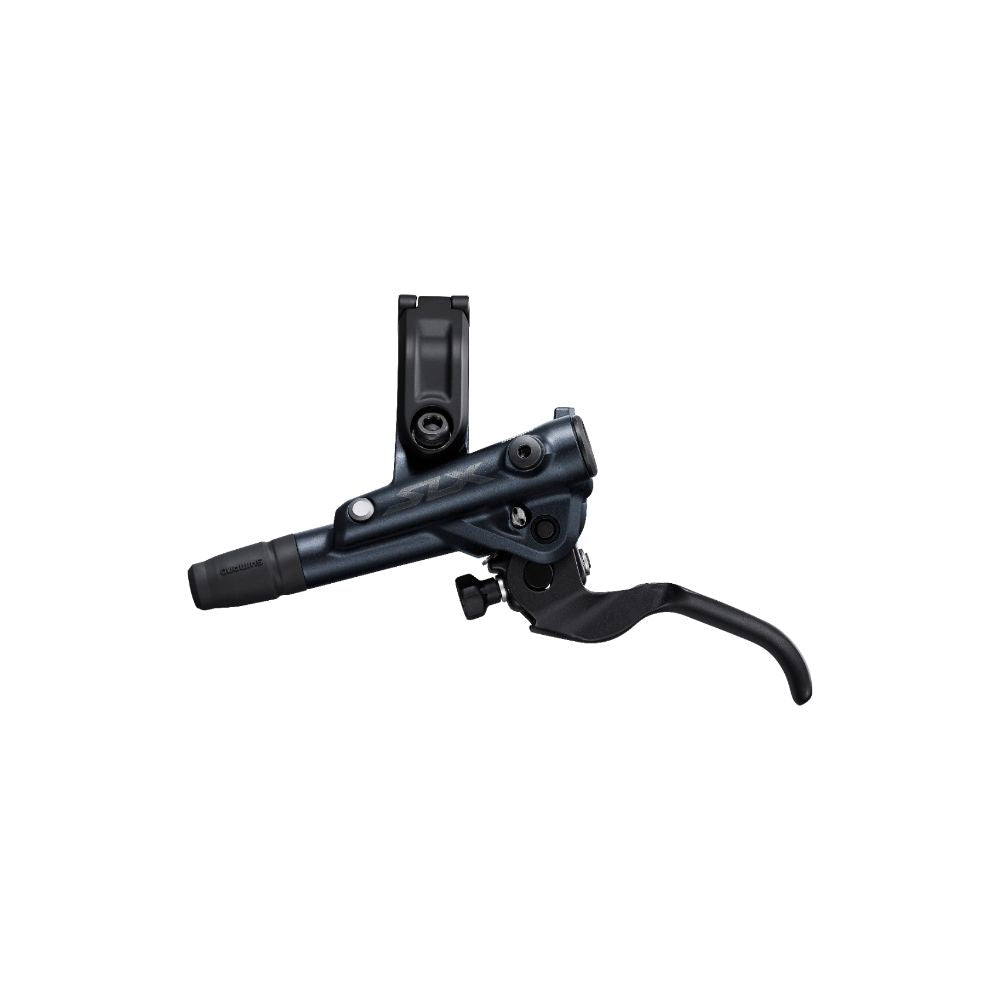

- Lever : BL-M7100 / Right-side / I-SP clamp / 2-finger design

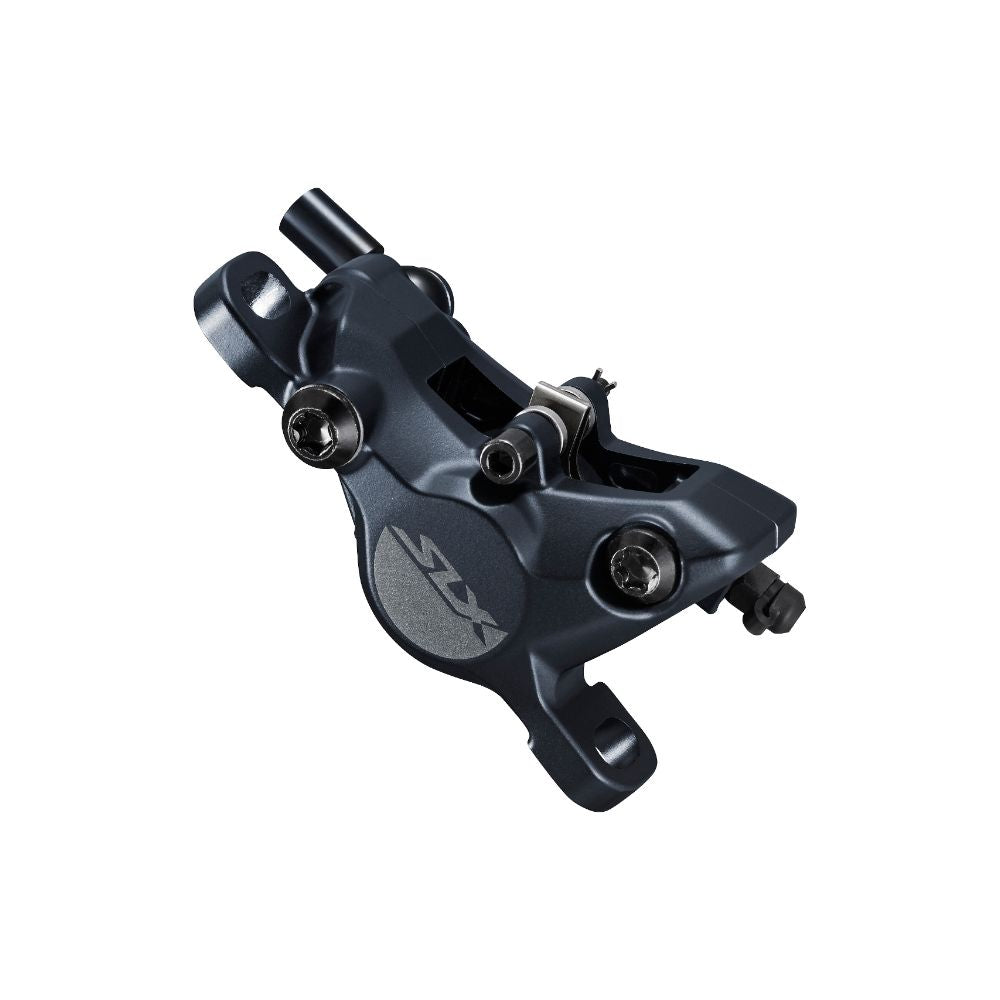

- Caliper : BR-M7100 / Postmount / 2 pistons
- Hose : SM-BH90 - 1700mm
- J-KIT : Yes (hose is not pre-connected)
- Oil Type : Mineral
- Weight : 309g
BRAKE INSTALLATION
- - Position the brake lever on the handlebar.
- - Mount the caliper on the disc brake mount.
- - Remove the black rubber cap from the end of the hose.
- - Remove the plugs located at the end of the brake levers.
- - Slide the black rubber nut cover onto the hose.
- - Do not remove the small seal located at the end of the hose.
- - Insert the brake hose into the lever nut.
- - While ensuring the hose is fully seated in the lever nut, tighten the nut to compress the olive within the lever. Do not overtighten; the nut threading should remain visible, as it will later be covered by the rubber nut cover you slid onto the hose earlier.
- - Finally, activate the brake lever to complete the installation.
