Shimano
Shimano Disc Brake Deore M6100 Kit - J-Kit 1600mm
Shimano Disc Brake Deore M6100 Kit - J-Kit 1600mm
Couldn't load pickup availability
SHIPPING INFORMATION
SHIPPING INFORMATION
Shipping Methods
Reliable delivery via GLS. Times vary by location.
Costs
Fees depend on destination and order value; free shipping for larger orders.
Tracking
Tracking numbers are emailed; use them to monitor your parcel.
Delays/Issues
Customer service helps with delays or lost parcels; re-shipping may occur if needed.
HOW TO TRACK MY ORDER?
HOW TO TRACK MY ORDER?
You can track your order using the tracking number sent to your email once your order has shipped. Simply go to the carrier’s website (GLS) enter your tracking number to see the delivery status.
If there are any delays or issues, contact customer service with your order number and tracking info for assistance.

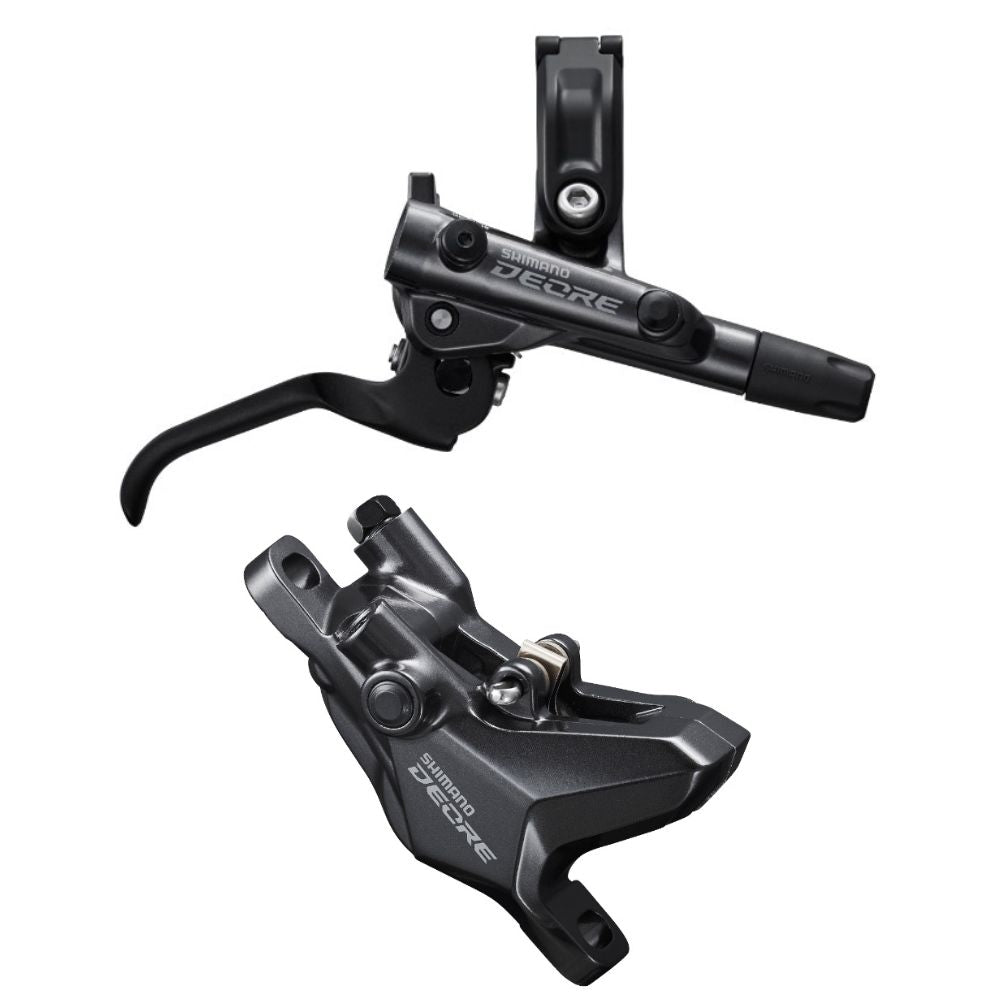

SHIMANO DEORE M6100 DISC BRAKE J-KIT - 1600mm
The SHIMANO DEORE M6100 brake kit features the SERVO-WAVE system, delivering outstanding and reliable performance with smooth operation. The short, 2-finger lever is refined and ergonomic, enabling precise braking control. The master cylinder and dual-piston caliper ensure powerful and dependable braking in all conditions. Additionally, the M6100 lever includes an extra support point on the handlebar to enhance rigidity during braking.
Thanks to its I-SPEC clamp, installation is quick and does not require removing the grips. It also offers a customized cockpit setup with a dial for reach adjustment and a 20° angle adjustment for the shifter lever. The J-KIT system allows for easy hose length adjustment before securing it to the master cylinder and/or simplifies internal cable routing.
SPECIFICATIONS
- Brake Type : Hydraulic disc brake
- Lever :strong> DEORE BL-M6100 / Right-side / I-SPEC clamp / 2-finger design

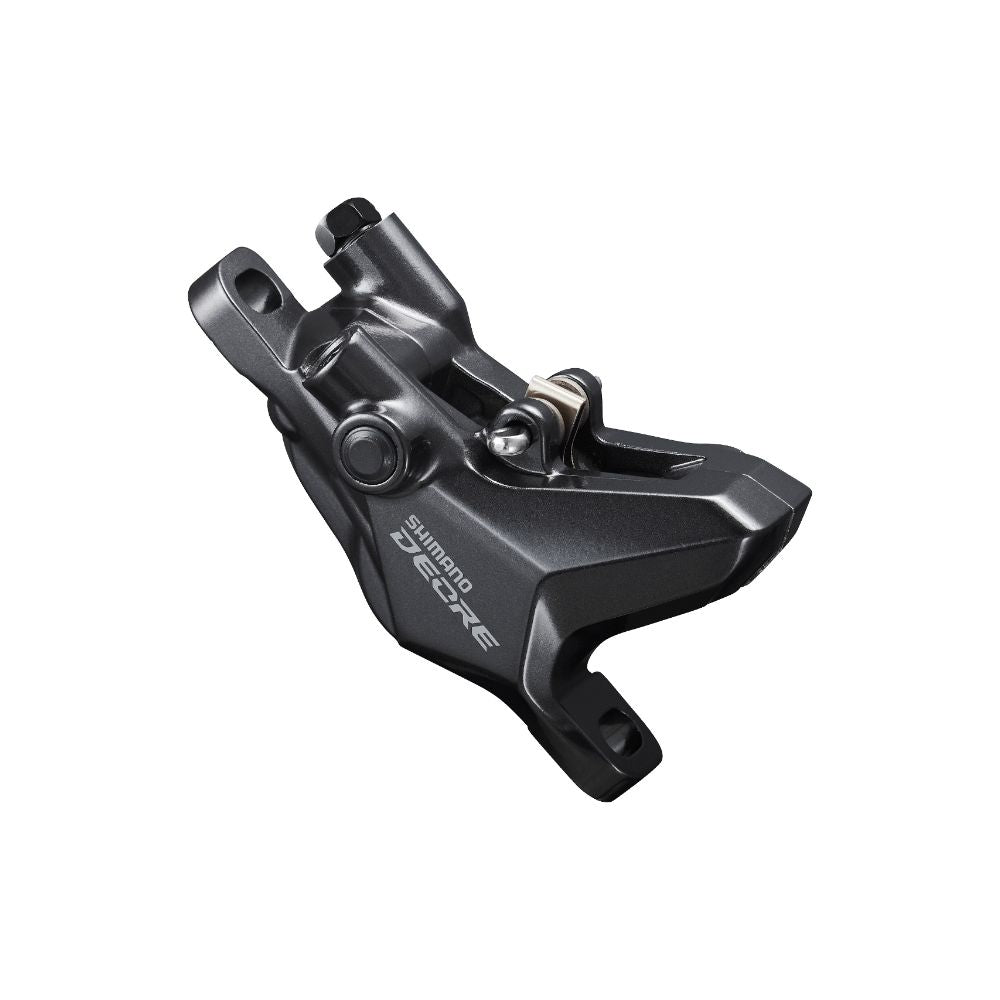

- Caliper : DEORE BR-M6100 / Postmount / 2 pistons
- Hose : SM-BH90 - 1600mm
- J-KIT : Yes (hose is not pre-connected)
- Oil Type : Mineral
- Weight : 298g
BRAKE INSTALLATION
- Position the brake lever on the handlebar.
- Mount the caliper on the disc brake mount.
- Remove the black rubber cap from the end of the hose.
- Remove the plugs located at the end of the brake levers.
- Slide the black rubber nut cover onto the hose.
- Do not remove the small seal located at the end of the hose.
- Insert the brake hose into the lever nut.
- While ensuring the hose is fully seated in the lever nut, tighten the nut to compress the olive within the lever. Do not overtighten; the nut threading should remain visible, as iill later covered by the rubber nut cover you slid onto the hose earlier.
- Finally, activate the brake lever to complete the installation.
